Product Details
＋

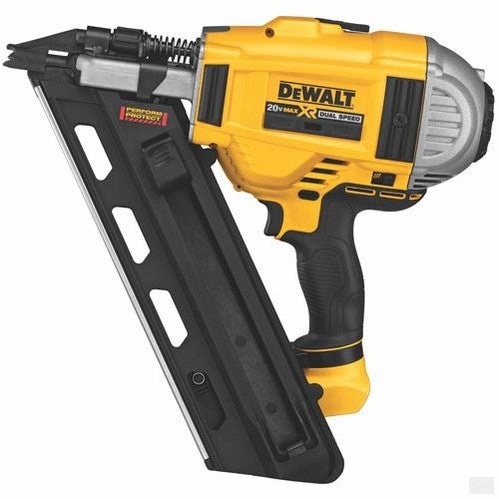

The DCN692B 20V MAX XR Brushless 2-Speed Nailer features consistent nail penetration and precision placement. Designed for optimizing speed for various fastener lengths and easy jam removals.
FEATURES:
- Brushless Motor and engine design allow the tool to work as fast as the end user with consistent nail penetration into both soft and hard joints
- Sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed.
- 2 Speed Selector Switch Optimizes Speed for Fastener Lenghts
- Easy access to the nosepiece for the removal of jammed nails
- Trigger Lock-Off allows trigger to be disabled when tool is not in use
- Top cap is impact resistant and easy to remove for troubleshooting
Specifications:
| BELT / RAFTER HOOK | TRUE |
| DEPTH ADJUSTMENT TOOL | FREE |
| DRY FIRE LOCKOUT | TRUE |
| FASTENER DIAMETER RANGE | .113 TO .131 IN |
| FASTENER LENGTH | 2 TO 3-1/2 IN |
| FASTENER TYPE / GAUGE | 30 DEGREE PAPER TAPE |
| FIRING / ACUTATION MODE | TOOL FREE SELECTABLE TRIGGER |
| GRIP | OVERMOLD |
| JAM CLEARANCE | YES |
| MAGAZINE ANGLE | 30 DEGREE |
| MAGAZINE CAPACITY | 55 |
| MAGAZINE LOADING | REAR LOAD |
| NAIL DIAMETER | .113 TO .131 IN |
| NO MAR PAD | TRUE |
| POWER SOURCE | CORDLESS |
| POWER TOOL TYPE | CORDLESS |
| SYSTEM | 20V MAX* |
| TOOL HEIGHT | 13.5 IN |
| TOOL LENGTH | 13.25 IN |
| TOOL WEIGHT | 8 LBS |
| TOOL WIDTH | 4 IN |
| TRIGGER LOCK-OFF | TRUE |
